Product name
2.2kw turbo compressor for PCB drying machine GHBG 003 34 1R6 side
channel blower
Products advantages
Insulation class: F/H,
Protection class: IP54/IP55
Oil free and low noise
More than 20000hours operation lifetime
No routine maintenance with stable performance
Easy installation and no vibration
SKF , NSK , ORS high quality bearing adapted
Wide voltage range and frequency range 28-60hz
Either used for suction ( vacuum ) or discharge ( pressure )
GOORUI turbo compressor has been widely used to replace some TOP
brand blowers such as : SIEMENS ( Gardner Denver , Nash ELMO,
Rietchle ) , Bush, FPZ, Becker , ELEKTROR ,etc.
Technical data
| Model No. | GHBG 003 34 1R6 |
| Phase | 3 |
| Stage | single |
| Frequency | 50HZ | 60HZ |
| Output | 2.2kw | 2.55kw |
| Voltage | 200-240△345-415Y |
| 220-275△380-480Y |
| Current | 11.4△/6.6Y | 11.4△/6.5Y |
| Max Airflow | 165m3/h | 195m3/h |
| Max Vacuum | -340mbar | -360mbar |
| Max Pressure | 360mbar | 315mbar |
| Gross Weight | 35kgs |
| Speed of rotation | 2850/3450r/min |
| Sound | 64/70db |
| Level of protection | IP54 |
| Insulation class | F |
Other Business Terms
Unit price: can be discussed with sales
MOQ: 1 Set
Delivery time: 3-10days
Payment terms: by TT, 100% before delivery or 30% deposit, 70%
balance against copy of BL.
Delivery terms: EX-WORK, CIF, FOB, DDP, DDU is available;
After-sales service
When the blower has been risen for a problem, we need the customer
provide following data sheet:
Firstly, we need the clear pictures of the blower, also the working
site pictures, and the description details of the problem.
Secondly, we will feedback the information to our engineer to check
and find a diagnosis to the problem.
If the problem is a small quality problem itself, then we will send
repair instruction to you to fix, if any accessories broken, we
will send the new accessories to you, also, we would consider
sending a new blower to you depends on the situation.
If the problem was caused by customers' improper use of blowers, we
will also offer you instruction how to repair it. And if need the
accessories, we also supply the accessories to you with charges.
Warranty
Within 3 months, send a free brand-new blower while ocean
freight/express courier is on customer's account.
Within 18months sending instruction via email and give a diagnosis
to the problem. Then send free accessories while express rate is on
customer’s account.

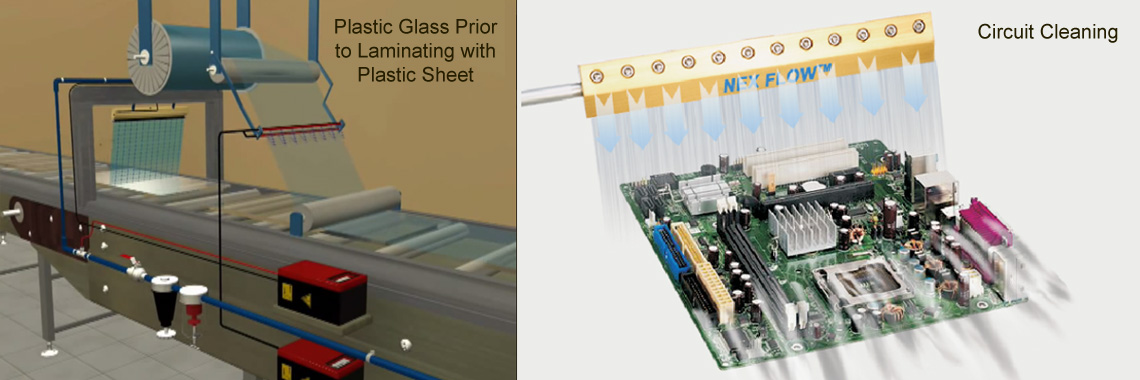

Applications
Goorui turbo compressor has been widely used in more than 100
different applications. It can be used for vacuum propose, such as
printing machine, dental suction machine,vacuum cleaner, central
vacuum system,air knife system, drying machine,PCB drying machine,
CNC router, vacuum lifting,etc;
Or it can be used for pressure propose, such as water,waste water
treatment, spa aeration, aquaculture, bio-gas conveying,oil
treatment equipment,Gas analysis, Smoke extraction
equipment,Milking equipment,Bottling equipment,Feeding
machine,TEXTILE machine,etc;
