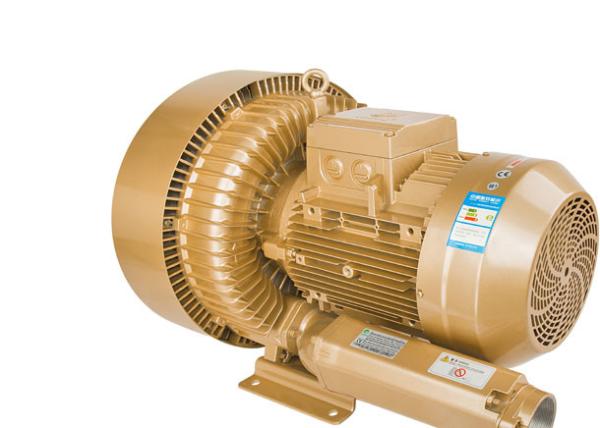

    IE3 Motor 11kw 3 Phase High Pressure Ring Blower for Cental Vacuum System

    Ask Lasest Price
    Brand Name : GOORUI
    Model Number : GHBH 015 36 2R8 IE3
    Certification : CE/TUV/ISO9001-2001/SGS/ROHS
    Price : Negotiable
    Payment Terms : T/T, L/C, D/P
    Supply Ability : 3000 sets per month
    Delivery Time : 10-15 working days.
    • Product Details
    • Company Profile

    IE3 Motor 11kw 3 Phase High Pressure Ring Blower for Cental Vacuum System


    IE3 Motor 11kw 3 Phase High Pressure Ring Blower For Cental Vacuum System


    ModelGHBH 015 36 2R8
    PhaseThree
    StageSingle
    Frequency50HZ60HZ
    Output11kw12.6kw
    Voltage345-415△/600-690380-480△/660-720
    Current28.0/16.229.0/16.7
    Max Airflow520m3/h620m3/h
    Max Vacuum-430mbar-460mbar
    Max Pressure600mbar600mbar
    Gross Weight104kgs
    Speed of rotation2850/3450r/min
    Sound

    74/78db

    Level of protectionIP55
    Insulation classF

    Goorui Ring Bower feathers and advantages :

    • Oil free and low noise
    • No routine maintenance with stable performance
    • Easy install and no vibration
    • Either used for suction ( vacuum ) or discharge ( pressure )
    • Insulation class: F, Protection class: IP54
    • Wide voltage & frequency range 28-60hz
    • Air flow range: 45 - 2330 m3/h (50/60 Hz)
    • Pressure range: 80mbar to 1040 mbar
    • Vacuum range: -70mbar to -730 mbar
    • Insulation class: F/H
    • Protection class: IP54/IP55
    • CCC, CE, RoHs, SGS, ISO9001-2008 certification


    GOORUI Ring Blower applications:
    • Agriculture(Fish pond and aeration tanks)
    • Beverage(bottle drying)
    • Bio fuels/bio-gas system
    • Food and vegetable processing
    • Medical and Health service(Dental cart and dental vacuum)
    • Package (Air knives blown-off / Labeling/Drying)
    • Plastics/Rubber(Air knives blown-off/ Bottle blow moulding/ Extruder Degassing/Pneumatic conveying/ Thermoforming)
    • Paper and pulp/ paper converting
    • Textile industry
    • Transportation/Loading/Unloading(Pneumatic conveying/material handling)
    • Water treatment/sewage treatment
    • Woodworking(CNC Routing/bulk handling




    Delivery terms:

    • CIF by sea or air freight terms
    • FOB SHENZHEN/GUANGZHOU
    • EX-WORK TERMS
    • DDP/DDU
    • DHL/FEDEX/UPS courier door to door
    • Other delivery terms are negotiable.


    Delivery time :


    In stock blower: 2-3days after payment

    Out of stock blower:7-15days after order confirmed.

    Special blower need to check specific


    We keep more than 1000sets blower regularly in stock to satisfy your fast delivery demands.


    IE3 Motor 11kw 3 Phase High Pressure Ring Blower for Cental Vacuum System

    Our service:
    • 12 months warranty and long-term marketing, after-sale support.
    • Professional engineer will help to recommend the most suitable models after studying your customers' requirements, and customize solution for any of your special applications.
    • OEM service available. Clear pictures, curves and dimensions are available for your website development.
    • Other dealer supports (through consultation).

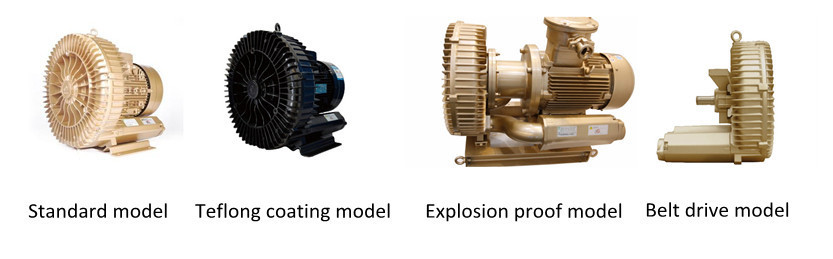

    Customized series available:

    IE3 Motor 11kw 3 Phase High Pressure Ring Blower for Cental Vacuum System

    Exhibition shows:


    IE3 Motor 11kw 3 Phase High Pressure Ring Blower for Cental Vacuum System
