    5.5 Kw Goorui Anti Explosion Single Stage Vacuum Pump Blower In Biogas Conveying

    Ask Lasest Price
    Brand Name : GOORUI
    Model Number : GHBH 7D5 36 1L8-DA(N)
    Certification : CE/TUV/ISO9001-2001/SGS/ROHS
    Price : Negotiable
    Payment Terms : T/T, L/C,
    Supply Ability : 1000 sets per month
    Delivery Time : 10-15 working days.depends on order amount and specification
    • Product Details
    • Company Profile

    5.5 Kw Goorui Anti Explosion Single Stage Vacuum Pump Blower In Biogas Conveying


    5.5 Kw Goorui Anti Explosion Single Stage Vacuum Pump Blower In Biogas Conveying


    ModelGHBH 7D5 36 1L8-DA(N)
    PhaseThree
    StageSingle
    Frequency50HZ60HZ
    Output5.5kw6.3kw
    Voltage345-415△/600-690Y380-480△/660-720Y
    Current13.3△/7.7Y13.3△/7.7Y
    Max Airflow530m3/h620m3/h
    Max Vacuum-300mbar-300mbar
    Max Pressure300mbar280mbar
    Gross Weight75kgs
    Sound70/74db
    Level of protectionIP55

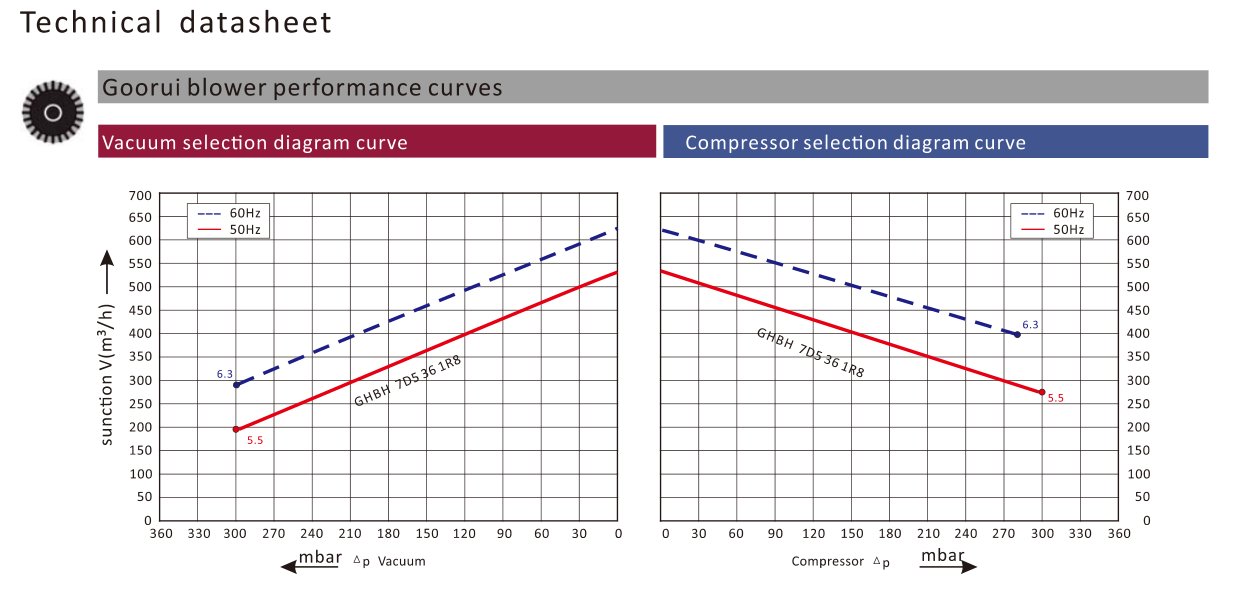

    BLOWER PERFORMANCE CURVES:

    Goorui Ring Bower feathers and advantages :

    • Oil free and low noise
    • No routine maintenance with stable performance
    • Easy install and no vibration
    • Either used for suction ( vacuum ) or discharge ( pressure )
    • Insulation class: F,
    • Wide voltage & frequency range 28-60hz
    • Air flow range: 45 - 2330 m3/h (50/60 Hz)
    • Pressure range: 80mbar to 1040 mbar
    • Vacuum range: -70mbar to -730 mbar
    • Insulation class: F/H
    • Protection class: IP55
    • CCC, CE, RoHs, SGS, ISO9001-2008 certification


    GOORUI Ring Blower applications:
    • Agriculture(Fish pond and aeration tanks)
    • Beverage(bottle drying)
    • Bio fuels/bio-gas system
    • Food and vegetable processing
    • Medical and Health service(Dental cart and dental vacuum)
    • Package (Air knives blown-off / Labeling/Drying)
    • Plastics/Rubber(Air knives blown-off/ Bottle blow moulding/ Extruder Degassing/Pneumatic conveying/ Thermoforming)
    • Printing
    • Paper and pulp/ paper converting
    • Textile industry
    • Transportation/Loading/Unloading(Pneumatic conveying/material handling)
    • Water treatment/sewage treatment
    • Woodworking(CNC Routing/bulk handling

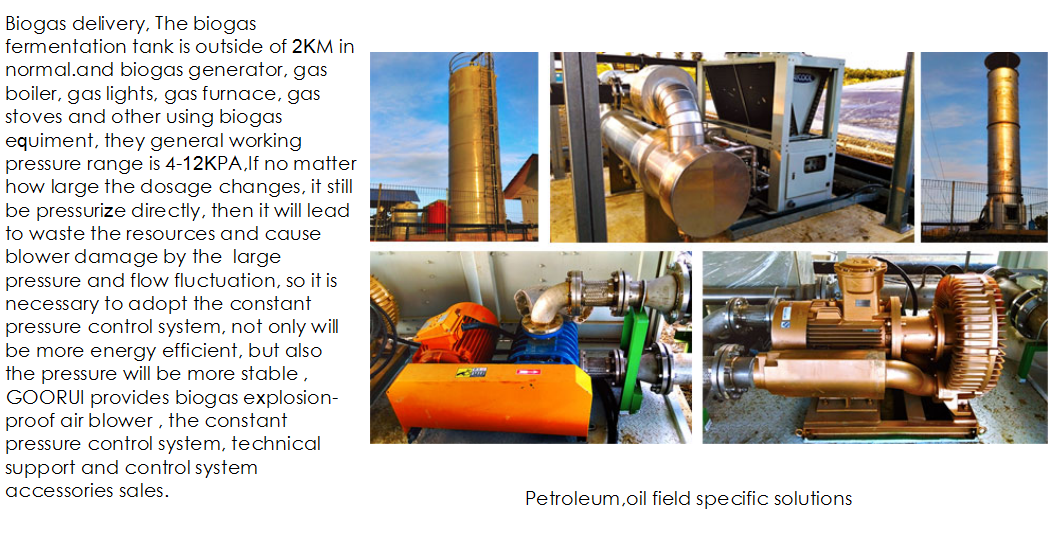

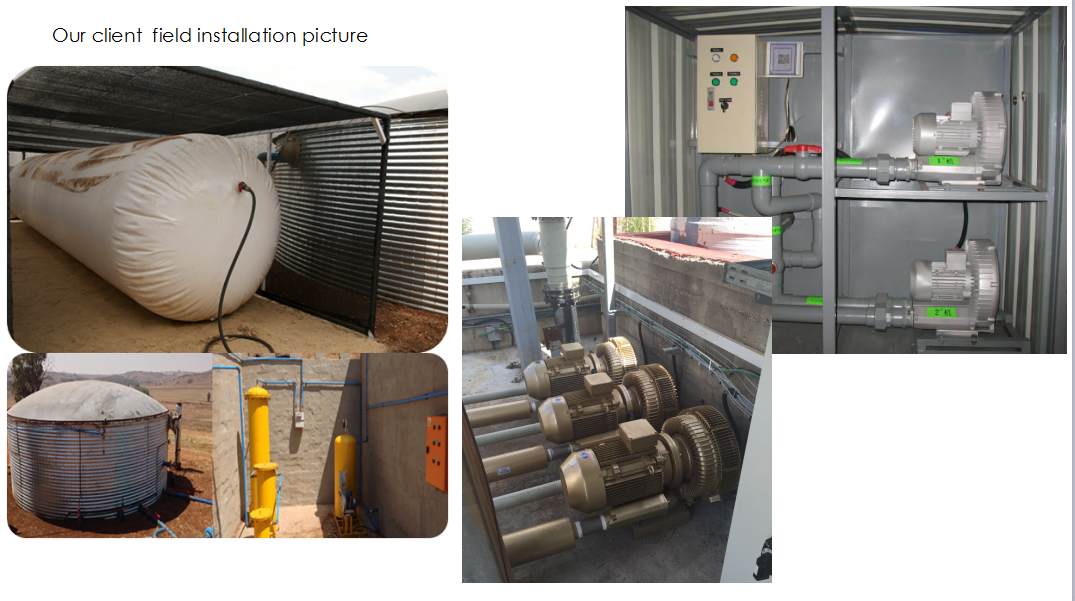

    Application Picture:

    Delivery time :

    In stock blower: 2-3days after payment
    Out of stock blower:7-15days after order confirmed.
    Special blower need to check specific

    We keep more than 1000sets blower regularly in stock to satisfy your fast delivery demands.
